Latitude
Combined Features of SunRail™ and Spectrum

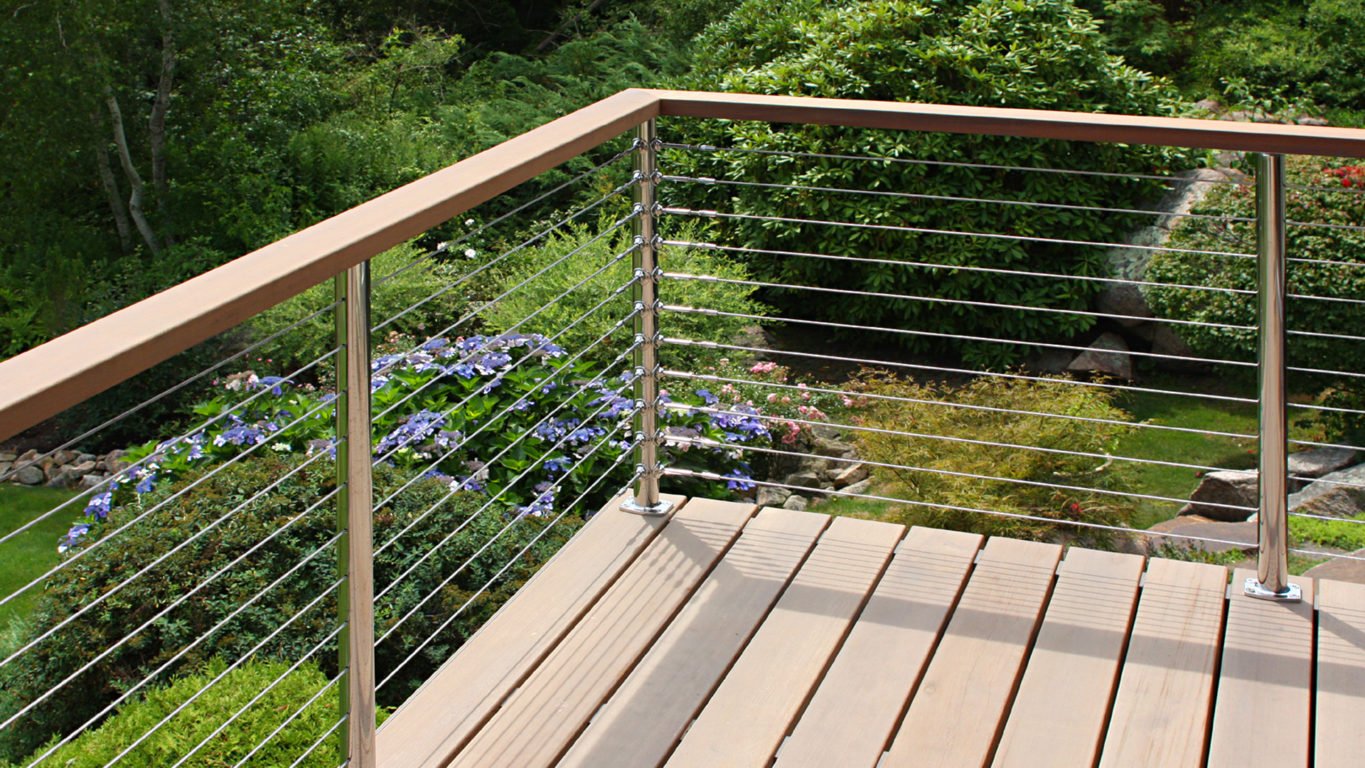

The Latitude Cable Railing System features prefabricated 316L stainless steel posts and horizontal cable infill, utilizing RailEasy™ round base tensioners and top rail mounting plates. These top rail mounting plates offer easy installation with virtually no hardware obstruction and allows customers to select their desired top rail.
Latitude Cable Railing Specifications
The Latitude Cable Rail System requires a hardwood top rail (customer supplied). Patented RailEasy™ mechanical swage tensioners are fastened to 2” round diameter stainless steel posts to capture the cable infill. These RailEasy™ Tensioners feature a round base and compression fitting which enables installers to cut cable on site, removing the hassle of pre-measuring and the cost of miscalculating dimensions. The top rail mounting plate offers easy installation with virtually no hardware obstruction and allows customers to select their desired top rail. The adjustable top rail mounting plate will be utilized in stair applications.
SPECIFICATIONS
Straight Sections
The Latitude Cable Railing System is offered in two standard post heights of 36″ or 42″ for straight sections.
Stair Sections
Rail height for stair sections is available in 36″.
Note: Railing heights are offered in these dimensions due to nationwide building codes. However, Atlantis Rail can supply custom heights/lengths upon request.
Between Posts Length
Atlantis Rail recommends staying within 4′ section lengths to maintain structural integrity.
Railing Finish
Latitude is offered in a highly polished finish.
Cable Spacing
Cable spacing varies depending on post kit model. Consult installation instructions for complete details.
DESIGN SPECIFICATIONS
OPTIONS
ACCENT YOUR CABLE RAILING SYSTEM WITH MICRO STAR™ LED LIGHTING
Add Micro Star™ LED Lighting underneath the wood top rail to illuminate the architectural features of the cable railing system. We invite you to visit our Rail & Deck Lighting page to view our complete line of LED lighting options.
